davidchamosa: CE Approval Electric Bike Torque Sensor OR05D1

Clearance CE Approval Electric Bike Torque Sensor OR05D1 0

Brand Name outrider

Type PAS sensor

Part Torque Sensor

Place of Origin Zhejiang, China (Mainland)

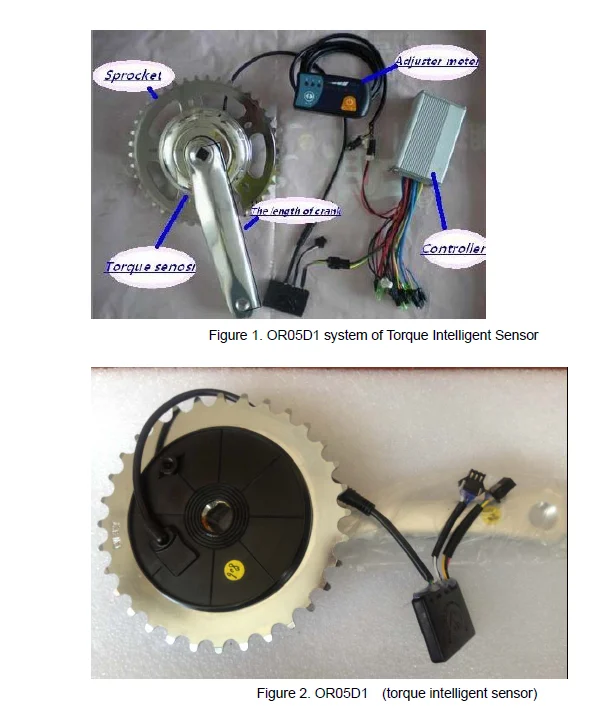

CE Approval Electric Bike Torque Sensor OR05D1 1.The power of voltage 5V, the max current: 30MA 2.Input method: torque 3.Output method: linear zero start, the voltage of output:0.5-4.5V 4.Signal response time:80MS, delay time:<50Ms 5.Adjustable parameter (external set): eight(meet the EN15194 and J IS standard, meet the different hub motor) 6.Display: the upper left LED lights flashing and times on the module. I.BRIEF INTRODUCTION The E-bicycle Intelligent OutRider Torque Sensor system (known as PAS torque sensor1:1 power-assisted), is a high-tech component designed for electric bicycles with ergonomics in mind. It is ideally suited for use on all electric bicycles available in the market. The system has a customer set-up interface that has been developed to conveniently and easily set 8 different Parameters of the PAS system tomeet different requirements. II.FEATURES 1.Wide application: Applicable to brush/ brushless motor controllers, high/ low/ sensor/ Sensorless motor-electrical system,24V/36Vpower systems; the hardware may be installed like a normal chain wheel crank on any bicycles. 2.Intelligent automatic switching function: A brand-new control mode, providing both intelligent riding and a handlebar display. 3. Zero start function:instantly initiated by foot pressure on the pedals, providing unmatched responsiveness. 4. The system is fully sealed against ingress of water and dirt. 5.Three level power adjustment:There are three levels of power assistance that can be selected. Power level and the Battery charge condition are clearly displayed. 6. Speed limiter:This can set a maximum assistance speed (eg.25km/hr, beyond which the power is cut) 7. Rider comfort:Large linear torque range with supreme smoothness, even through mechanical gear changes. 8. Direct exchange with the standard bicycle front chain sprocket and crank, requiring no special modifications of the bicycle. 9. Responsiveness: Instant response both on pedal pressure and when pedaling stops or Pressure on the pedals is reduced. 10. Switching to our controller will save electricity and provide an all round improvement to the electrically assisted riding experience. Power is delivered smoothly and progressively, with especially pleasant climbing ability. Ⅲ.BENEFITS 1. The Intelligent Torque Sensor makes the rider one with his/her bicycle, assisting as needed, and adjusting itself according to road conditions, especially when climbing. 2. When climbing, the system provides assistance that transforms climbs so that they become like riding on the flat, whatever the gradient. 3. Prolonging battery life: Controlling the output power avoids surge damage to the battery. Power is automatically matched with increasing speed. The combined result of improvedcontrol is an increase in mileage range by twice or more, when compared to speed sensing systems. 4. Safety: the system turns off the power almost instantly (within 2ms) when pedaling ceases. The e-bicycle then simply coasts on under its own inertia, the rider then controlling the e-bicycle just like a bicycle. Excellent CE Approval Electric Bike Torque Sensor OR05D1 0 Best CE Approval Electric Bike Torque Sensor OR05D1 2 Top CE Approval Electric Bike Torque Sensor OR05D1 3 Cheap CE Approval Electric Bike Torque Sensor OR05D1 4
